Havells Solar Acdb And Dcdb Distribution Box

Name: Havells Solar Acdb And Dcdb Distribution Box
Brand: E-MARKET ENTERPRISE
Price: 1300.0 INR
Availability: InStock

Price 1300.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Havells Solar Acdb And Dcdb Distribution Box Specification

Feature
Weatherproof, UV Resistant, Flame Retardant, Prewired

Corrosion Resistant
Yes

Torque
Standard torque for cable glands and terminal blocks

Grade
Industrial Grade

Standard
IEC 61439, IS/IEC Standard

Thickness
Enclosure wall approx. 2-3 mm

Shape
Rectangular Box

Hardness
High Impact Strength

Surface Treatment
UV Resistant PC/ABS Enclosure

Capacity
Typically up to 1000 V DC, 32A

Load Capacity
Up to 32A per circuit

Finish
Transparent Polycarbonate Cover

Fasteners Type
Stainless Steel Screws

Material
Polycarbonate/ABS housing, Brass/Copper contacts

Application
Solar PV System DC/AC distribution and protection

Ingress Protection (IP) Rating
IP65

Transparency
Clear Front Cover for Visual Inspection

Output
2 Strings Out

Mounting Type
Wall / Surface mounting

Rated Current
32A per string (refer model)

Operating Temperature
-10C to +55C

Isolation
Independent Isolator Switch Provided

Cable Entry/Exit
Pre-fitted Cable Glands

Maximum Voltage
1000V DC (typical/varies per model)

Protection Devices
MCB 32A, SPD (Surge Protection Device)

Input
2 Strings In

Configuration
DCDB 2 In 2 Out

Type
Solar ACDB & DCDB Combo Distribution Box

Havells Solar Acdb And Dcdb Distribution Box About

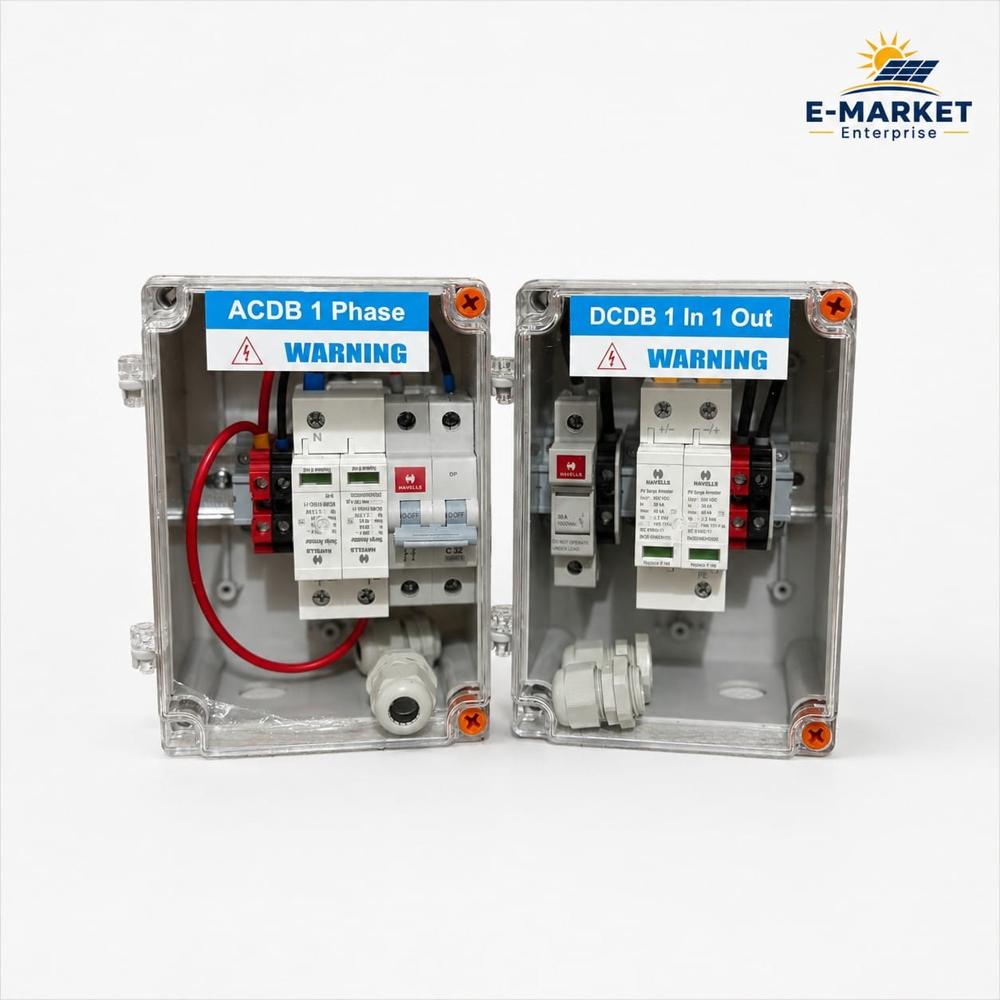

This solar distribution unit includes a 1-phase ACDB and a 1-in-1-out DCDB, both featuring high-quality Havells electrical components. Designed for safe solar power management, these enclosures provide reliable surge protection and circuit control for residential and commercial solar installations.

Comprehensive Solar Power Safety

Designed for solar PV installations, the Havells ACDB & DCDB Distribution Box offers complete electrical defense with built-in MCBs, SPDs, and independent isolator switches. Its high ingress protection rating (IP65) and UV-resistant, flame-retardant housing guarantee performance in harsh outdoor conditions. The transparent front cover ensures effortless visual inspections for ongoing maintenance.

Simplified Installation and Maintenance

The distribution box includes prewired circuits, pre-fitted cable glands, and is suitable for wall or surface mounting. Its design streamlines connection for up to two input and two output strings, supporting up to 1000V DC, 32A per circuit. Stainless steel screws and robust polycarbonate/ABS materials provide durability and resistance to corrosion and impact.

FAQ's of Havells Solar Acdb And Dcdb Distribution Box:

Q: How does the Havells Solar ACDB & DCDB Distribution Box ensure safety for my solar PV system?

A: The box is equipped with 32A MCBs, independent isolator switches, and SPD for overcurrent and surge protection, all housed within an IP65-rated, flame-retardant enclosure, minimizing risks from electrical faults and environmental exposure in solar applications.

Q: What is the ideal application for this distribution box?

A: This product is best suited for rooftop and ground-mount solar PV systems where efficient AC and DC power distribution and protection up to 1000V DC and 32A per string are required, meeting industrial-grade standards.

Q: When should I use a DCDB with 2 in 2 out configuration?

A: A 2 in 2 out DCDB is recommended when you have two DC string inputs and require isolation and protection for two separate outputs, ensuring safe and organized distribution in medium-scale solar installations.

Q: Where should the distribution box be installed for optimal performance?

A: It is designed for wall or surface mounting, ideally placed in a sheltered yet accessible location near solar PV arrays to allow easy cable management and quick visual checks through its transparent cover.

Q: What installation process does this distribution box support?

A: The box comes pre-wired with cable glands for straightforward, secure connections. Installers simply connect the string inputs and outputs, fasten with stainless steel screws, and set appropriate torque for terminals as per standard guidelines.

Q: How does the clear front cover benefit ongoing maintenance?

A: The transparent polycarbonate cover allows operators to perform routine visual inspections of internal components without opening the box, facilitating quicker checks and enhancing maintenance safety.
