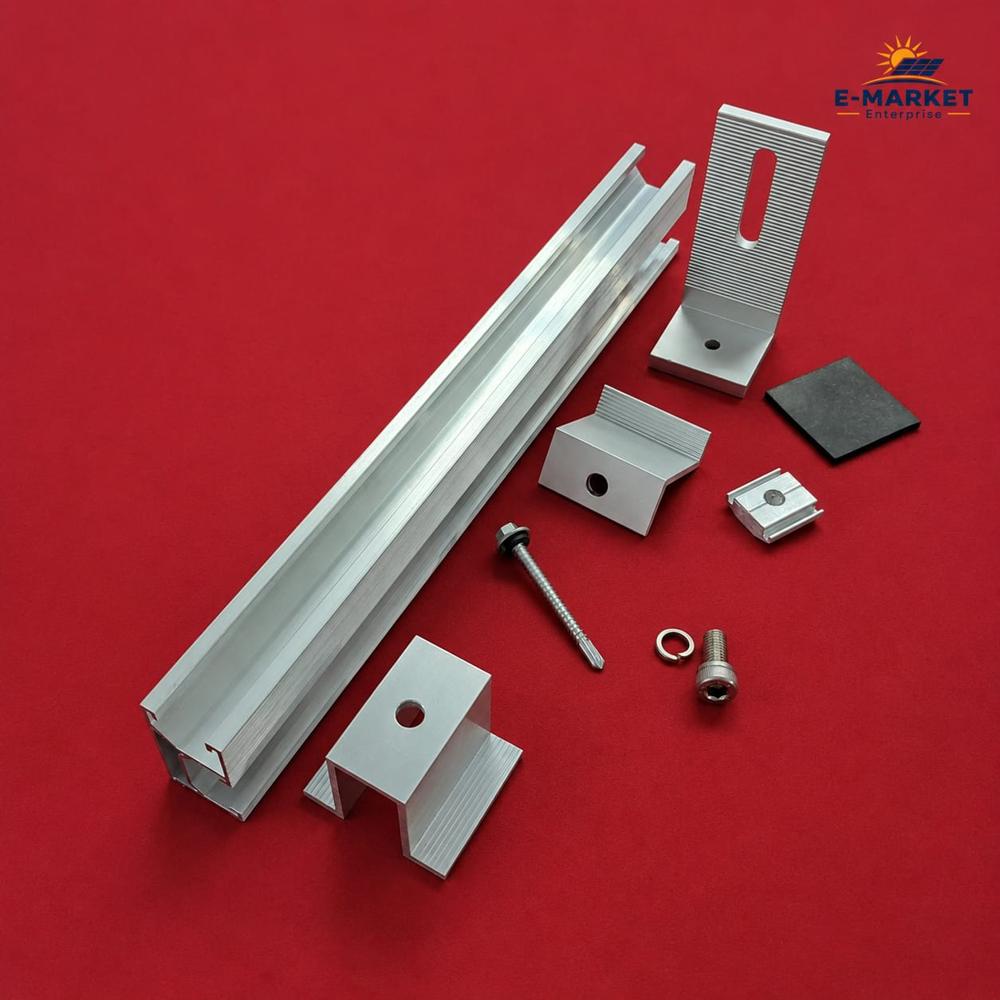

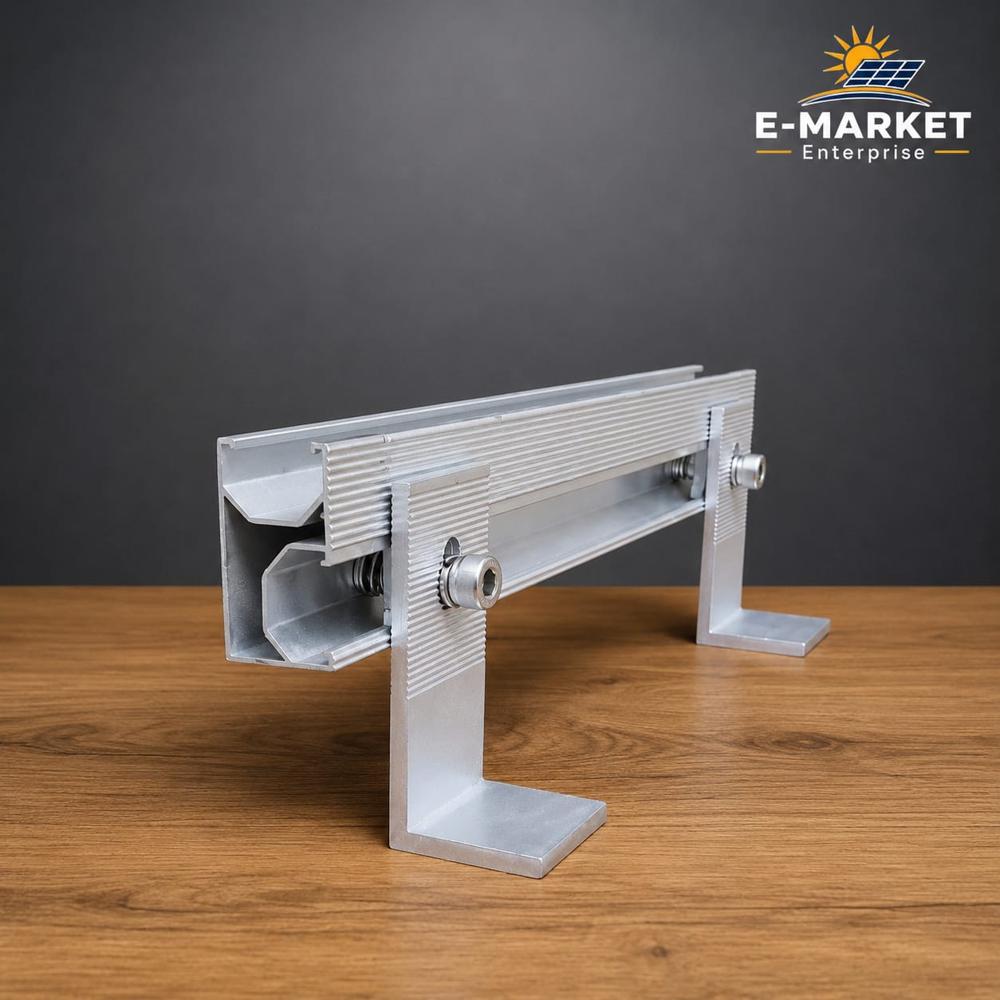

Aluminum Solar Panel Mounting Rail System

Name: Aluminum Solar Panel Mounting Rail System
Brand: E-MARKET ENTERPRISE
Price: 346.00 INR
Availability: InStock

Price 346.00 INR/ Piece

Get a Price/Quote

MOQ : 20 Pieces

Aluminum Solar Panel Mounting Rail System Specification

Temper
T5

Material Grade
6005-T5 or equivalent

Finish
Smooth, Anodized

Size
Customizable length (typically 2100 mm, 4200 mm, 6000 mm, etc.)

Thickness
2.0 mm - 3.0 mm

Length
Can be tailored up to 6000 mm

Cross Dimension
40 mm x 40 mm

Width
Typically 40 mm; customizable

Fabrication Process
Extrusion, Anodizing, Cutting

Usage & Applications
Mounting, fixing and support of solar panels in PV systems

Corrosion Resistant
Yes, with anodized finish

Material
High-grade Aluminum

Features
Lightweight, Rust proof, Durable, Easy to install

Product Type
Aluminum Solar Panel Mounting Rail System

Shape
Rectangular/U-shape for rail; L-shape brackets

Strength
High tensile strength suitable for rooftop and ground-mounted systems

Hardness
Brinell 95 HB

Alloy
Aluminum Alloy 6005

Grade
6005-T5

Surface Treatment
Anodized

Dimension (L*W*H)
Customized as per requirement (commonly 40mm x 40mm x Length)

Color
Silver

Load Resistance
Designed to withstand wind load up to 60 m/s and snow load up to 1.5 kN/m2

Salt Spray Test Resistance
Passed 1000 hours

Connection Type
Bolt-fastening with M8/M10 stainless steel bolts

Compatibility
Fits most framed and frameless solar PV modules

Thermal Expansion Coefficient
23.6 x 106 /C

Accessories Included
End clamps, mid clamps, L-foot mountings, fasteners, grounding lugs

Service Temperature Range
-40C to +85C

Installation Type
Roof, Ground, and Wall mountable

Applicable Standards
ISO 9001, AS/NZS 1170, TUV, CE, SGS

UV Resistance
Excellent

Aluminum Solar Panel Mounting Rail System About

This durable aluminum mounting rail is designed for secure solar panel installation on rooftops. It features a robust extruded profile with adjustable brackets for precise alignment, ensuring long-term stability and corrosion resistance in various weather conditions.

Exceptional Durability & Strength

Built from premium Aluminum Alloy 6005-T5 and treated with an anodized finish, the rail system ensures longevity, resistance to corrosion, and outstanding mechanical strength. It confidently withstands severe weather conditions, including high wind and snow loads, making it highly reliable for long-term outdoor use.

Versatility in Installation

This mounting rail system is suitable for roof, ground, and wall installations, making it adaptable to various project requirements. Its universal design fits most framed and frameless solar panels, while customizable dimensions and shapes meet diverse architectural and functional needs.

Seamless Assembly and Integration

Installation is streamlined with included components such as end/mid clamps, L-foot mounting brackets, fasteners, and grounding lugs. The bolt-fastening connection with stainless steel hardware ensures secure and efficient integration into any photovoltaic system.

FAQ's of Aluminum Solar Panel Mounting Rail System:

Q: How do I install the Aluminum Solar Panel Mounting Rail System on different surfaces?

A: The system can be mounted on roofs, ground, or walls using the provided end clamps, mid clamps, L-foot mountings, and fasteners. Follow the included installation guidelines, which detail bolt-fastening with M8/M10 stainless steel bolts to ensure proper and secure attachment.

Q: What types of solar panels are compatible with this rail system?

A: This mounting system is designed to fit most framed and frameless solar PV modules, providing a universal solution for a wide range of panel brands and sizes. Customizable dimensions further enhance its compatibility.

Q: When should I consider using this rail system for my solar installation?

A: Choose this system whenever you need a high-strength, corrosion-resistant, and easy-to-install solution for mounting solar panels on roofs, ground surfaces, or walls-particularly in locations with high wind or snow loads.

Q: Where can this rail system be used?

A: It is ideal for residential, commercial, and industrial photovoltaic installations requiring secure, long-lasting support. Its engineered resilience makes it suitable for coastal, high-altitude, and other challenging environments.

Q: What is the installation process for the mounting rails?

A: Begin by determining the layout and securing the mounting rails using L-foot brackets and fasteners. Next, attach the solar PV modules with end and mid clamps. Grounding lugs and stainless bolts complete the process, ensuring electrical safety and physical stability.

Q: How does the system benefit my solar PV project?

A: The system's lightweight, rustproof, and durable construction delivers long-term reliability and reduced maintenance costs. Its ease of installation and compatibility with major international standards ensure smooth project execution and lasting performance.

Q: What makes this rail system resistant to corrosion and weathering?

A: Fabricated from anodized 6005-T5 aluminum alloy, the rails pass 1000 hours of salt spray testing and exhibit excellent UV resistance. These features provide superior defense against corrosion, even in harsh environmental conditions.
